P12-C

2 way surround speaker designed for ceilings in immersive 3D systems.

Equipped with a low-mid frequencies 12” (31 cm) loudspeaker and a 2” high frequency coaxial driver.
This device has been designed for overhead channels (ceiling) among immersive 3D sound systems. It can be assisted with a bass reinforcement module.

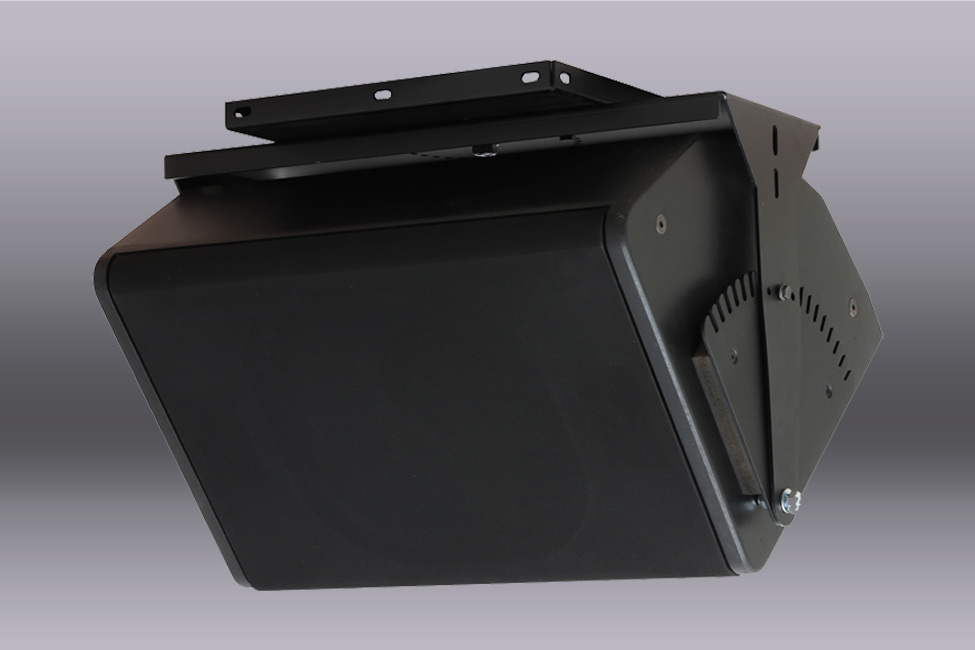

The enclosure can be oriented either in X or Y way with the dedicated wall mount and bracket.
Theater size : 250 to 1500 seats.
Black textile front mask.

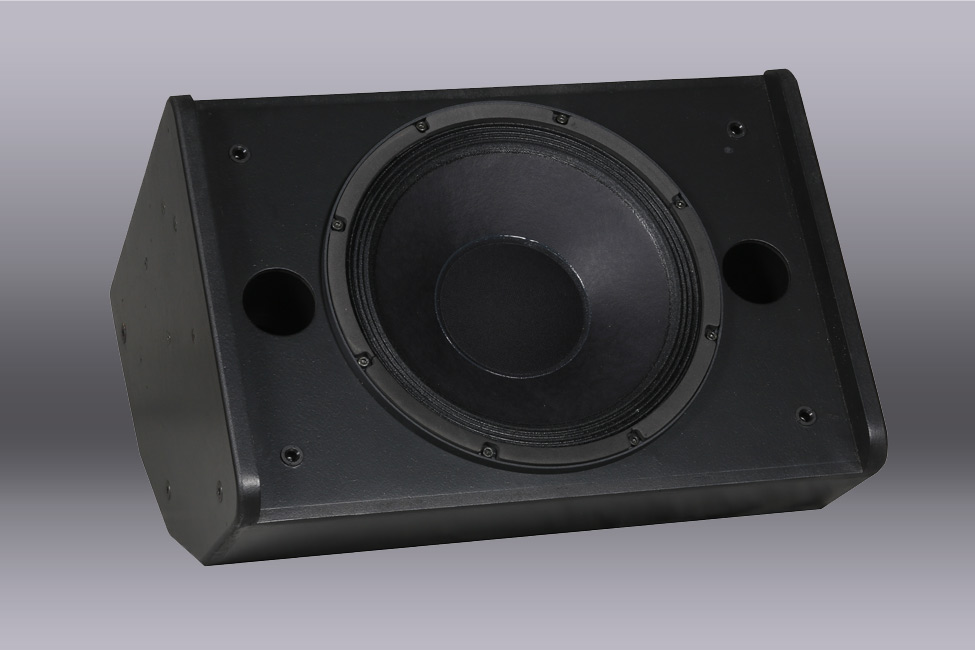

DKaudio: P12C
DKaudio: P12C in real situation

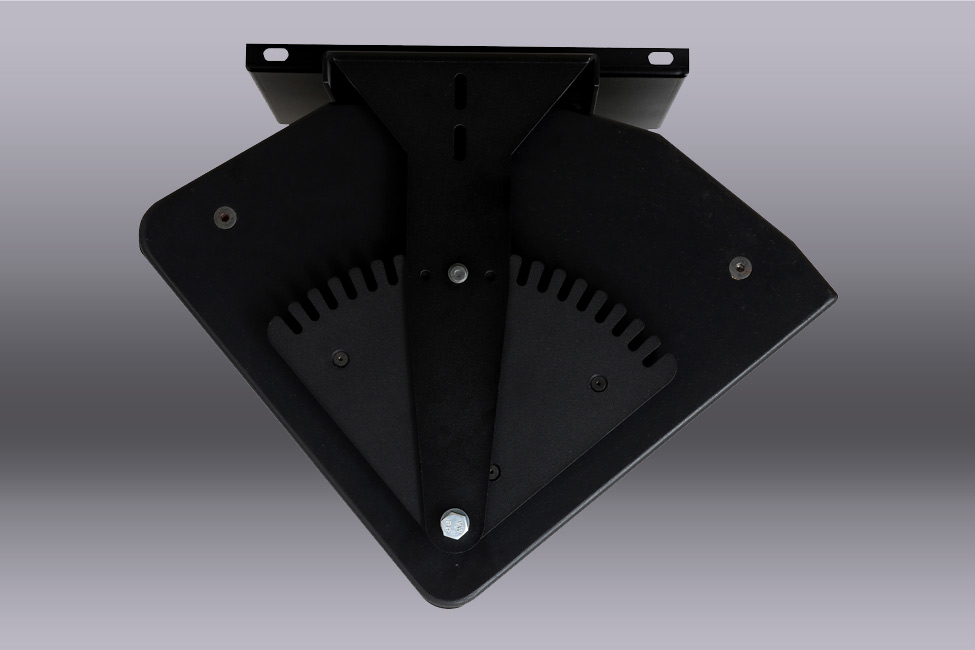

DKaudio: P12C lateral view
DATASHEET:
SPECIFICATIONS:

Impedance : 8 ohms
Power capacity: 465 W AES
Efficiency: 101 dB/1W/1m
Bandwidth: 45Hz à 22kHz
Low/mid frequency speaker: 12” - 4" coil
High frequency driver: 2” - 2.87 coil
Directivity: 95° conical

DIMENSIONS HxWxD (mm) :
350 x 502 x 350
WEIGHT (Kg) :
21.7
Spare parts, accessories

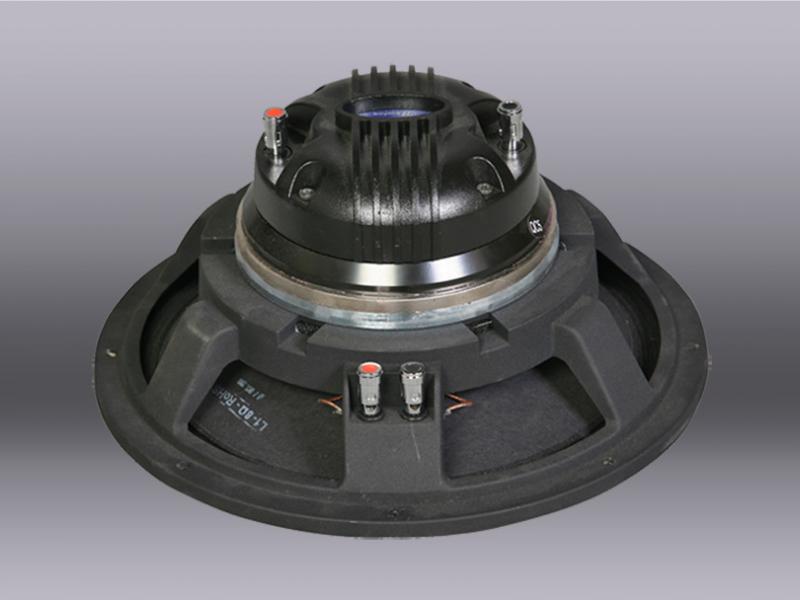

  • DKaudio: 12XA30Nd
    DKaudio: 12XA30Nd
