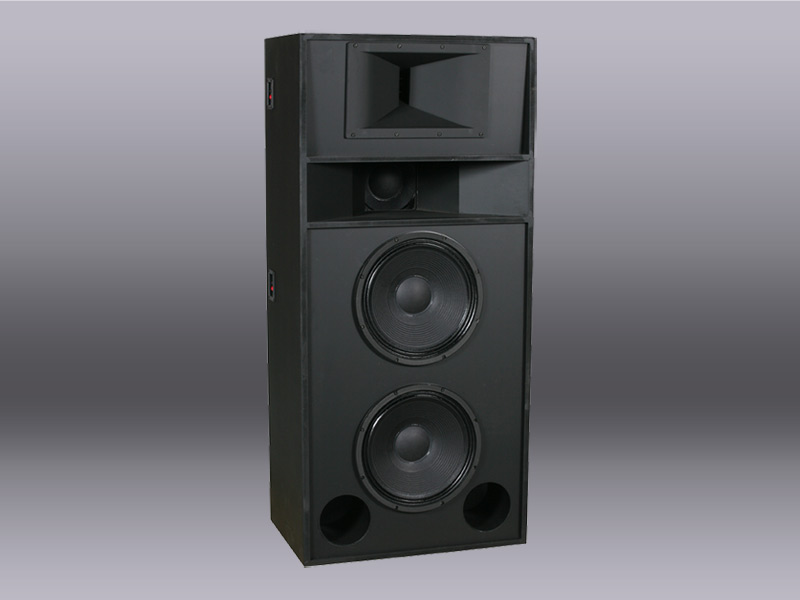

E215-433

This three way integrated speaker offers an amazing quality of sound reproduction.
The E215-433 will easily fit behind a screen and will offer first class sound.

The low frequencies are reproduced by two 15” (38cm) speakers with 4” moving coils, the mid-range way uses a 10” (26cm) speaker with a 3” moving coil guided by a horn with an exponential profile, which brings a great richness in medium range frequencies, and a high frequency speaker via a 2” driver with a 3” moving coil guided by a constant directivity horn. The low and mid-range speakers are exclusive models designed by DKaudio.

This three way speaker comes with a passive filtering between the low-mid range and a mid-high range
driver (three ways bi-amp), which lets you replace the traditional two way bi-amp without having to withdraw lines of speakers... Read more on the datasheet.

DKaudio: E215-433
DATASHEET:
SPECIFICATIONS:

Impedance: 4 ohms / 8 ohms
Power capacity: 1200 / 350 W AES
Efficiency: 101 / 103 dB/1W/1m
Bandwidth: 35Hz to 18kHz
Low frequency speakers: 2 x 15” - 4” moving coil
Mid-range frenquency speaker: 10” - 3”moving coil - Exponential horn
High frequency driver : 2” -  3” moving coil
Directivity: 90° x 40°
Range: 22.95 meters
Room size (seats): 50 to 300

DIMENSIONS HxWxD (mm) :
1520 x 698 x 465
WEIGHT (Kg) :
99.70 Kg
Spare parts, accessories

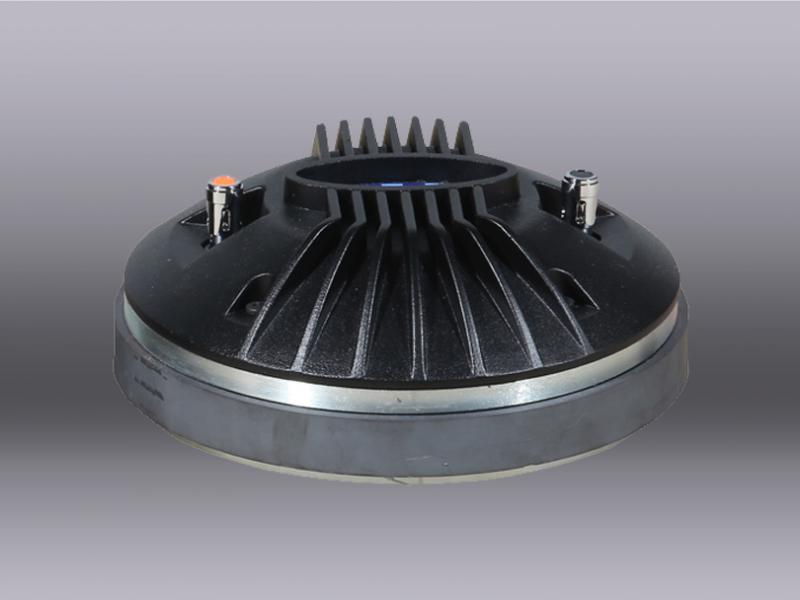

  • DKaudio: CP750Ti
    DKaudio: CP750Ti

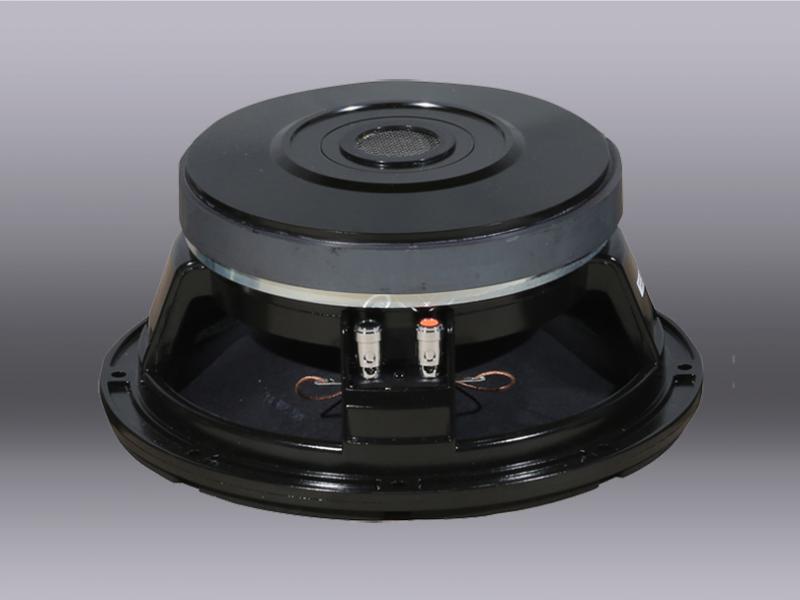

  • DKaudio: 10BM32
    DKaudio: 10BM32

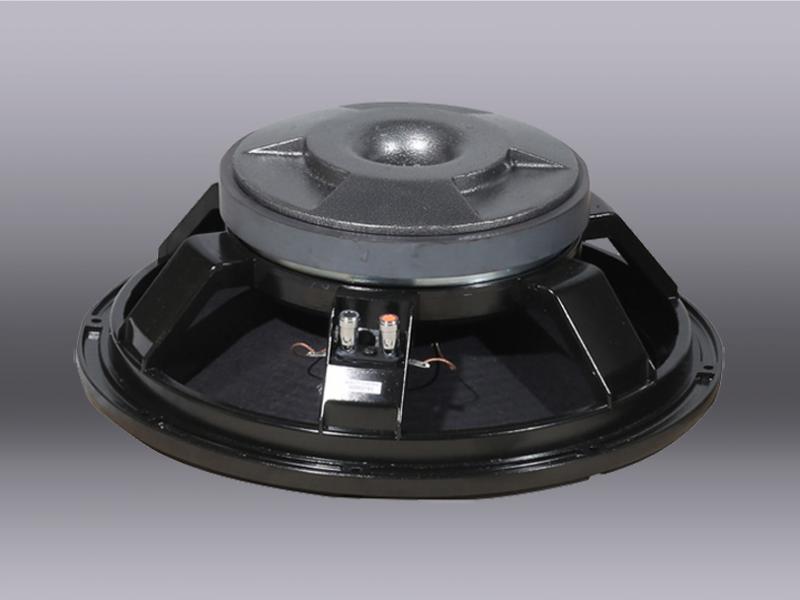

  • DKaudio: 15B42
    DKaudio: 15B42
