E15-43

Two way speaker

It is equipped with a 15” (38cm) low frequency speaker with a 4” coil and a 2” driver with a 3” coil on a constant directivity horn.
Its shallow depth lets you install it in constricted areas.
The low frequency speaker is an exclusive model designed by DKaudio.

This speaker normally comes in a passive version (mono-amp.), but an active filtering version (bi-amp.) is also available upon request.

E15-43
DATASHEET:
SPECIFICATIONS:

Impedance: 8 Ohms
Power capacity: 450 Watts AES
Efficiency: 99 dB/1W/1m
Bandwidth: 40Hz to 18kHz
Low frequency speaker: 15” – 4” coil
High frequency driver: 2” – 3” coil
Directivity: 90° x 40°
Range: 15.75 m
Room size (seats): 40 to 120

DIMENSIONS HxWxD (mm) :
1000 x 660 x 345
WEIGHT (Kg) :
54.90 kg
Spare parts, accessories

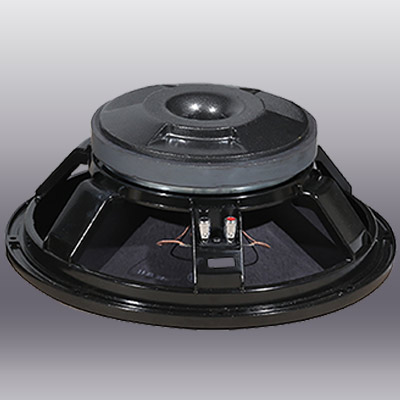

  • DK Audio 15B46
    DK Audio 15B46

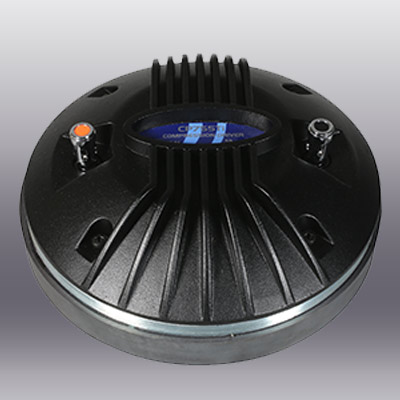

  • DK Audio CP755Ti
    DK Audio CP755Ti
